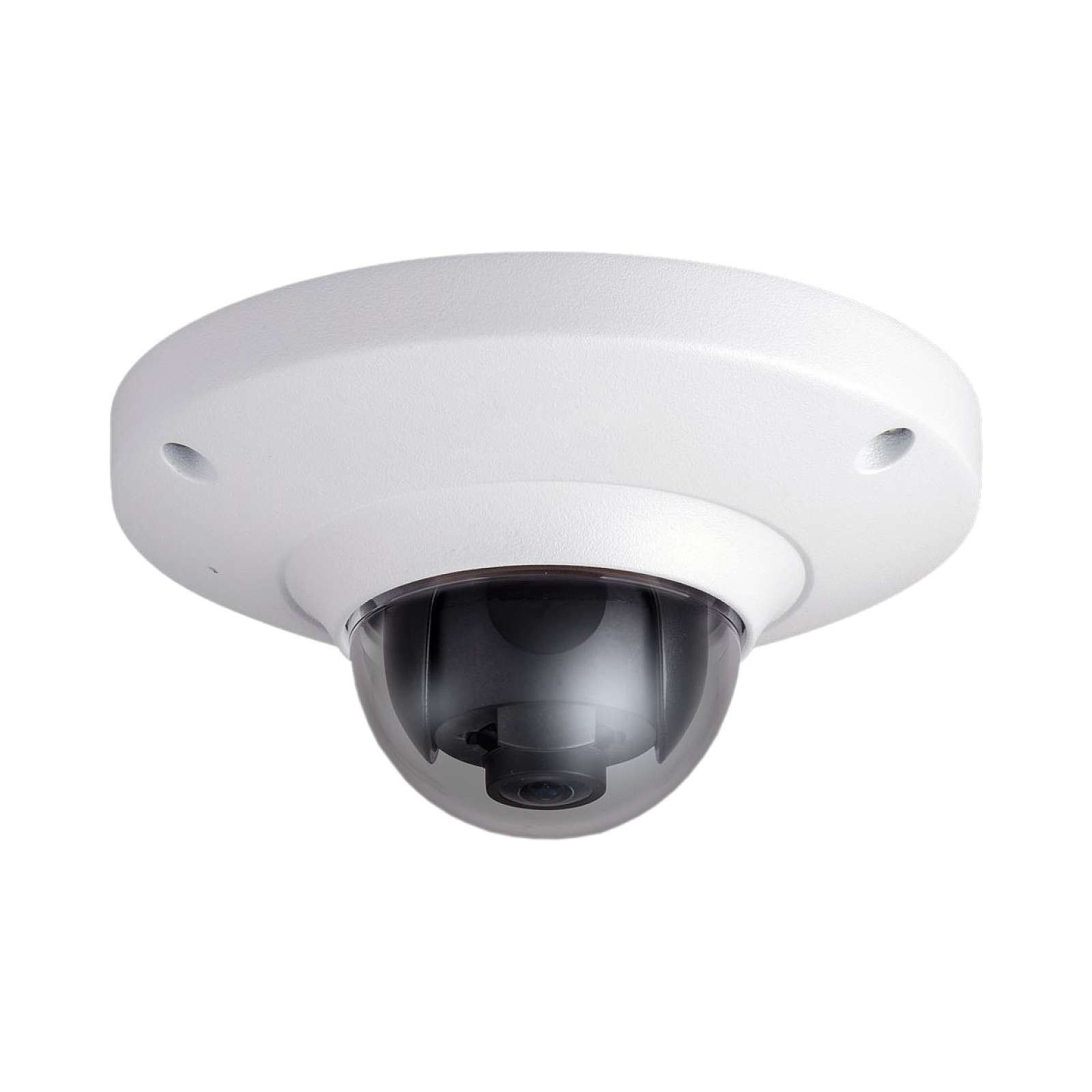

4MP 1.18mm Indoor Fish Eye Camera with Micro SD / IK10
$0.00
1/3” 4Megapixel progressive scan CMOS • H.264 & MJPEG dual-stream encoding • Max 15fps@4M(2592×1520), 25/30fps@1080P • Day/Night(Electronic), 3DNR, AWB,AGC,BLC • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS • 1.18mm fixed lens • Micro SD memory, IK10, PoE
Quantity:
1/3” 4Megapixel progressive scan CMOS • H.264 & MJPEG dual-stream encoding • Max 15fps@4M(2592×1520), 25/30fps@1080P • Day/Night(Electronic), 3DNR, AWB,AGC,BLC • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS • 1.18mm fixed lens • Micro SD memory, IK10, PoE
1/3” 4Megapixel progressive scan CMOS • H.264 & MJPEG dual-stream encoding • Max 15fps@4M(2592×1520), 25/30fps@1080P • Day/Night(Electronic), 3DNR, AWB,AGC,BLC • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS • 1.18mm fixed lens • Micro SD memory, IK10, PoE
Product Information
SPECIFICATIONS
| Camera | ||
| Image Sensor | 1/3" 4Megapixel progressive scan CMOS | |
| Effective Pixels | 2592(H) × 1520(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3(4) ~ 1/10000 | |
| Min. Illumination | 0.01lux/F2.0(color) ,0.001Lux@F2.0(B/W) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | N/A | |
| Day/Night | Auto(Electronic)/Color/B/W | |
| Backlight Compensation | BLC/HLC/DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 1.18mm | |
| Max Aperture | F2.0 | |
| Focus Control | Manual | |
| Angle of View | H:180° | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/ MJPEG | |
| Resolution | 4M(2592 × 1520)/3M(2048 × 1520)/UXGA(1600 × 1200)/1.3M(1280 × 960)/720P(1280 × 720)/D1(704 × 576/704 × 480)/CIF(352 × 288/352 × 240) | |
| Frame Rate | Main Stream | 4M(1 ~ 15fps)/ 3M (1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 20K ~ 8192Kbps | |
| Audio | ||
| Compression | G.711a/G.711u/PCM | |
| Interface | 1/1 channel In/Out(Built in Mic) | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| Compatibility | ONVIF,PSIA,CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | N/A | |
| Alarm | 1/1 channel In/Out | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V,PoE | |
| Power Consumption | Max 6W | |
| Working Environment | −30°C ~ +60°C, Less than 95% RH | |
| Ingress Protection | N/A | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ110mm × 54mm | |
| Weight | 0.25kg | |
